Open Reel Audio

Unique Content

If what you are assessing is a commercially produced item, more than likely it is not "unique." It may be unique to your archive but, at some point, it was mass produced. Truly unique items often require priority in preservation because they may be the sole remaining document of this material.

First Generation / Master / Original Items

When we talk about "generations" in audiovisual preservation, we're talking about "copies." If something is a second-generation item, it means that it has been copied from the original, or "master." (We should note that sometimes people use the term "master copy," which can be confusing. A master copy is a master.)

The original audiovisual item is the most valuable iteration of the item that you can have, because it should have the best audio and video quality possible when compared to its copies. (This assumes, of course, that the original has been well preserved and is in good shape.) Another reason for giving priority to the original is that it may be the only iteration there is of the item. This means that any damage that occurs to the original could mean that information is lost forever. Even if you have a copy, damage to the master means that you must resort to using copies that may have inferior picture and/or sound.

Following best practice, you should use the master as little as possible and store it in the best conditions possible. Many institutions use their master once to make a "secondary master." This secondary master is then used to make copies for access. Ideally, you should almost never have to return to the master so that it can stay in the best possible storage conditions in perpetuity. If the item you are assessing is a master, then it will be higher in priority for reformatting and preservation than those items which are copies.

Risks of Handling/Playback

Playback and handling are the leading causes of damage to audiovisual items. A film, for example, is most likely to be damaged being fed into or coming off of a projector. Any playback machine, no matter how well maintained, can cause damage to an audiovisual item. That said, it is still best to maintain your playback equipment alongside your audiovisual items. Regular service and cleaning is critical to helping minimize the risks of playback for your materials. An item may sometimes only have one play left before it is permanently damaged, rendering it unusable. If an item must be played back, an operator skilled in handling the playback equipment and at identifying problems with the media prior to playback should be the only person allowed to play the material in question. Allowing media to be handled and played back by untrained staff or patrons is a danger to the material.

i

i

Playback Equipment

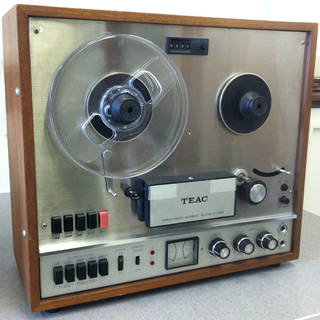

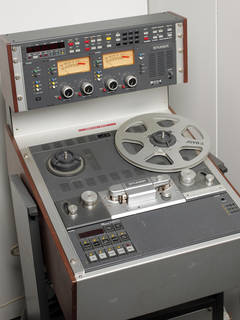

One of the great challenges of audiovisual preservation is the fact that AV materials require playback machines in order to "decode" the information stored on the materials. This applies to all audiovisual formats. Of course, a further complication is that the playback machine must be appropriate to the format of the AV material. When we consider how many hundreds of AV formats there are, we see that this is a large challenge indeed. The playback machine must also be well-maintained because it can damage the materials fed into it if the machine is in poor repair.

It is important to look at your collection and consider what formats are most valuable to your institution, what formats are accessed the most by your users, and what format you have the most of. These will be the materials that you should have playback equipment for, if at all possible. This can be challenging, but there are avenues you can explore. Local television and radio stations, colleges and universities (particularly those with film, art, communications, or journalism departments), and audio recording studios often have older equipment that they no longer need. As a result, these are excellent places to establish relationships with as you may be able to procure equipment at very reasonable prices. However, keep in mind that universities and colleges often have considerable red tape when selling or donating their equipment, so you should be prepared to invest some time and effort when working with them.

i

i

Never put any collections materials into a playback machine without first testing that machine. Have a "dummy" item that you can test a piece of equipment with. For example, you can designate a VHS tape as your dummy tape and use it to test your recently procured and/or serviced VCR. Ideally, this tape should neither be an item that is a part of your collection nor have any value so that it will make no difference if you damage the item.

We do not recommend that you service a piece of playback equipment yourself because of the potential for damage to both the equipment and AV materials. We recommend that you find and establish a relationship with a local repair service. Maintaining your playback equipment should be at least as important as maintaining your collections.

If you do not have (and cannot acquire) playback equipment, it does not mean that the AV materials are without value. In fact, it may be an indicator of higher preservation priority if the playback equipment is obsolete or unavailable to you at your archives. These materials can be especially vulnerable. Film duplication vendors will most likely have the equipment and can transfer the film to a format accessible to your archives.

Remember, if you have materials with no way to play them back, these items will have diminished accessibility. They can end up costing you time, effort, and money when you have to send them out to be transferred to a format for which your institution does have playback equipment. If you plan to digitize your materials, you will have to have well-functioning playback equipment for each format you decide to digitize.

Orientation in Storage

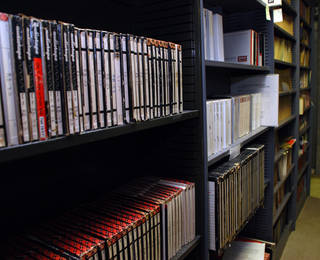

The orientation of a tape can affect its long-term well-being while in storage. The best orientation for tape is vertical and "on edge" . It is recommended that you use acid-free archival-quality hold-down tape to secure the loose ends of the open reel tape.

i

i

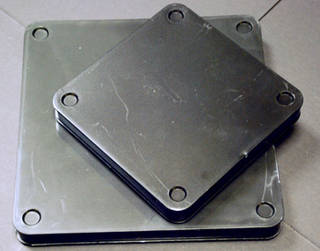

Open Reel Audio - Appropriate Container

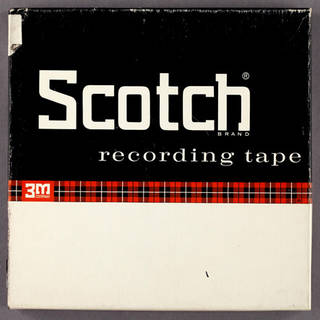

Containers protect the tape from dirt, dust, mold, and vermin. These contaminants can damage the surface of the magnetic tape, which can affect its sound quality and even render it unplayable. Ideally, these materials should be housed in archival-quality inert plastic containers to avoid damage from non-archival quality boxes. An audiotape's container should be clean and protect the tape's recording surface. Moldy, damaged, and dirty containers should be replaced.

If your tape is housed in an acid-free paper or plastic container and you're unsure if it is inert or acceptable for preservation purposes, check the condition of the container. If it is protecting the tape from dust, pests, and other contaminants, not shedding or introducing any contaminants through its own degradation, and is clean and free of mold or excessive dirt, the container is acceptable for use. Rehousing to a more expensive inert plastic container is not vital in this case. If the tape is housed in anything other than a hard plastic container (e.g. in a cardboard slipcover) or is not sufficiently protected, it should be rehoused in an inert plastic container. Additionally, any reel with a slotted hub should be replaced.

i

i

i

Labeling

If your item has any kind of labeling on the container, the item itself, or any related material, we highly recommend that you revise the description of this item and enter this information in the notes field.

Unidentified tapes have a tendency to get overlooked or shuffled to the back of the shelf in an institution. Basic information should be recorded on a label both on the tape itself and on the tape's container. Information like title, creator, some kind of alphanumeric identifier (e.g. accession number, catalog number), and some kind of date information (e.g. the date the tape was received, the date the tape was recorded). Bear in mind that describing your materials both on the containers and in a catalog help to keep the materials accessible. When you can't find something, you're less likely to devote time, effort, and funds to its preservation.

Additionally, if you are considering re-housing your tape, you should transfer or retain the labeling and notes (if extant) of the original container. These notes may be helpful to a future researcher.

i

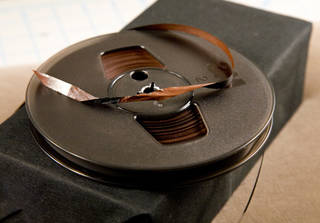

Open Reel Audio - Leader

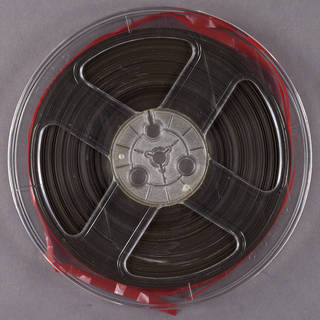

Leader is used to protect the tape at the beginning and end of the reel, and it can also be a place where pertinent information about a tape can be written. It is generally made of uncoated polyester tape. Leader should be fairly long (enough to wrap around the reel a few times) so that there is sufficient leader to protect the tape at the head and the tail. Dirty or damaged leaders should be removed and replaced. If replacing leader that contains information, transcribe the information onto the new leader.

i

Physical Damages

If you load a crumpled or otherwise damaged reel onto a deck, you are asking for trouble. Continued play of an already damaged tape significantly increases the odds of the tape being eaten and/or further damaged by the playback machine. (Sadly, there are no guarantees that even a pristine tape will not be eaten by a machine—this is why we must preserve playback equipment alongside our media.)

If your tape is in the fully rewound or fast-forwarded position, you may see tape leader when you look along the tape path. As a tape is played back, it is most likely to be damaged at the beginning and end of the film. If there are any issues with the playback equipment, the leader ideally takes the brunt of the damage since damaged leader is easier to replace than unique sections of tape.

i

i

Mold / Pest Damage

Mold

MOLD CAN BE TOXIC. Proceed with caution when examining tapes for mold. Do not handle moldy tapes longer than necessary. If you find a moldy item, immediately place it and its container in a sealable plastic bag until conservation action can be taken.

It can be very hard to assess mold on videotape, largely due to the fact that you can't see very well into the reel at the tape itself. You may, however, be able to see contamination through the windows on the reel. If you see white or brown patches or strands on the tape, the chances are that you're dealing with mold. Inspecting the container the tape was stored in is also a good idea. If you see mold on this container, then it's a good bet the mold has traveled onto the tape. Tapes suspected of being moldy should NOT be played back as the mold can get into the playback machinery and cause poor playback. Mold can also travel onto other tapes so it is best to quarantine any tapes suspected of being moldy. Mold is very difficult to clean off of video and audiotapes, particularly cassette-based tapes, so you're going to have to send these tapes on to professionals for thorough cleaning. This isn't something you're going to want to do in-house.

i

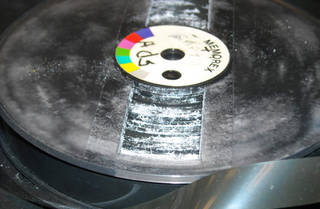

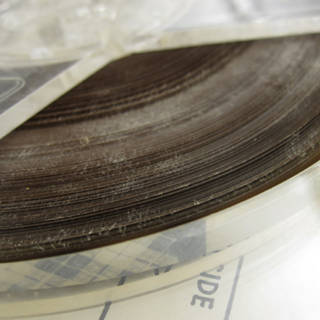

The following are images of mold on various magnetic tape formats and containers.

i

i

i

i

Pests

Pests like insects and rodents tend to like paper and textile materials more than audiovisual materials. That said, pests can still do damage to your AV collections. When assessing the exposure of your collections to pests, it is necessary to look not just at the materials themselves and their containers but also to look at the rest of the environment. Insects and rodents tend to leave droppings in areas they inhabit. Insects tend to leave behind a substance called frass, which is the undigested fibers from paper. If you see droppings and/or frass in your storage area, it is a strong sign that your materials are being exposed to pests. Small, irregular holes on paper-based containers (e.g. sleeves for grooved-disc audio recordings) are also a sign that pests have attacked your materials.

Some tips for reducing your materials' exposure to pests are to refrain from eating anywhere near your collections materials. Crumbs draw rodents and insects, so keep food far from your collections. Another tip is to be careful opening donated materials when you receive them. Pests can hitch rides into your facility on these materials, so having a good, clean staging area where you can inspect donated items for, among other things, pest-related evidence can help you reduce your storage environments' exposure to pests.

i

i

Open Reel Audio - Acetate Deterioration

These ratings have been adapted from the typical ratings for motion picture film suffering from vinegar syndrome. Unlike an acetate film base that might be deteriorating, freezing is not recommended for magnetic tape. Freezing tape can cause damage to the information layer of the tape: this is why the PSAP recommends storing acetate-based audiotape in cool--not frozen--conditions.

No Deterioration. This tape is suffering from no acetate decay.

Deterioration Starting. Acetate decay is starting. This tape should be monitored and kept in carefully monitored conditions. The tape is flexible, with little (less than 1%) to no apparent shrinkage. There may be a very faint vinegar smell.

Actively Deteriorating. This tape is actively deteriorating. It should be moved to carefully monitored conditions if possible and duplicated. The tape will have a stronger vinegar odor and may exhibit shrinkage (between 0.8 to 2%). The tape may be able to be accessed and played back in-house by an experienced technician using maintained and functioning equipment. The tape will also exhibit some waviness along the edges; it may curl slightly and resist lying flat.

i

Critical Deterioration. This tape is exhibiting shrinkage and warping. It may be difficult or impossible to handle the tape without damaging it. The tape should be moved to carefully monitored conditions, if possible. The vinegar odor is unmistakable. The tape is likely to be damaged during playback—if it can be played back at all. It may be possible for a trained vendor to recover information off the tape.

i

Magnetic Tape Breakdown

For information on audiotape material failures and behaviors other than those associated with polyester, see the Audiotape Base Materials subsection of the Collection ID Guide.

Polyester Tape: Polyurethane Binder Deterioration

a.k.a. Sticky Shed Syndrome / Soft Binder Syndrome

The material that binds magnetic particles to a base tape film is called the binder. When it comes to magnetic tapes, the polyurethane binder is often considered the weakest link (other than a degrading acetate base) due to an inherent vice broadly referred to as "Soft Binder Syndrome," or specifically as "Sticky Shed Syndrome" if the signal is salvageable. Although polyurethane binders were employed with polyester magnetic tapes from the late 1960s through the late 1970s, it seems that those from the early 1970s through the early 1980s are especially at risk. Binder breakdown will harm not only the recorded media but your playback equipment as well.

• Soft Binder Syndrome (SBS): Richard Hess (2008) recommends this inclusive term be used for all tapes that show stickiness, shedding, and/or squealing, whether they respond to baking or not. This category includes Sticky Shed Syndrome and what has been in the past (incorrectly) referred to as Loss of Lubricant.
• Sticky Shed Syndrome (SSS): A subclass of Soft Binder Syndrome that is treatable through "baking." The most common form of binder breakdown, SSS leaves a dark, gummy residue on playback of back-coated tapes. The shed residue comes from both the binder and the back coating. Attempt to identify SSS before playback.
• "Loss of Lubricant" (LoL): An outmoded but still useful term for a form of SBS. The term is now considered a misnomer since lubricant loss is not actually to blame. The major distinction between LoL and SSS is that the former does not react to incubation. Do not bake tapes identified as having LoL.

SSS / SBS Identification

Test for Sticky Shed Syndrome BEFORE attempting playback. To do this, slowly turn the reel, watching to see whether the tape unspools naturally from the pack or whether it sticks/lingers on the pack. The affected tape surface may exhibit a soft and gummy quality and will leave a dark brown residue on tape player components on playback: this is a result of binder and back coating shedding. Do not subject an SSS-affected tape to playback.

i

Most tapes with SBS will make an audible squealing sound during playback. Other telltale signs of SBS may include jerky and/or slowed tape movement during playback. At its worst, binder breakdown will prevent playback or cause tapes to distort due to high tension from playback.

For more information on binder failure, causes, solutions, and more example images, see Magnetic Tape Binder Breakdown in the Collection ID Guide.

i

i

i

Playback Quality

It is often difficult to truly assess an item's condition without playing it back. It is entirely possible to have an item that, to the eye, appears to be in good condition, but when played has very bad sound quality. Playback, however, carries with it the risk that your item could be irrevocably damaged and/or could cause damage to the playback machine. For this reason, we do not recommend playback as a means of assessment. However, if you do play an item and find that the sound quality is poor, it likely means the item is in need of reformatting. If this item has been played back recently, there may be notes indicating the playback quality.

Documentation

A strictly visual inspection of an item will not provide all the clues about the item's sound quality. If you have any past documentation about playback or tape quality, this information can be extremely useful in assessing the tape without having to subject it to playback risks. Additionally, documentation may provide evidence of past preservation measures taken on the content or item. You should always document any preservation measures that you take on your materials. This provides evidence to future preservationists and researchers about the path that the content/object has traveled.

Your documentation should NOT be stored with the item. You should store your documentation (e.g. notes written on paper) in a separate physical location. Paper has numerous conservation issues and can be more damaging than helpful. For example, paper can damage your tape by shedding fibers that can abrade the tape surface. If you track your items via electronic means, you may be able to note preservation history in your electronic tracking system.

Having additional documentation about your item can help inform your future preservation decisions.

Squealing During Playback

Squealing during playback can be a result of a number of things. This could denote problems with the playback machine, especially if many cassettes inserted into the machine exhibit the same problem. It could also be a problem with the tape itself. One common cause of squealing is sticky shed syndrome. Tapes that squeal or make any other abnormal noise during playback should be removed immediately from the playback machine. It is not recommended that you play these tapes back yourself; you should send them to a professional restoration expert to be reformatted. If you determine that the playback machine is the problem, the machine should be serviced before you use it again.

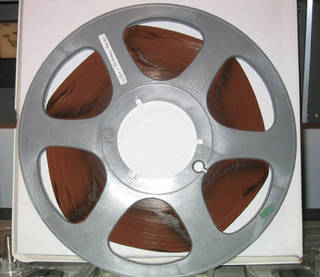

Quality of the Tape Wind

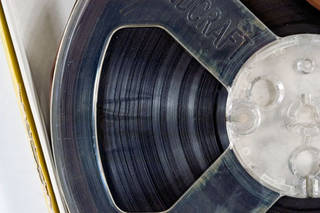

All video and audiotapes should exhibit a tight, even tape pack. This means that when you look at the tape itself, you should not see "windows", or large gaps through the pack. Additionally, if you look at the tape from a slight angle (usually through the clear or translucent window in the cassette), you notice no strands of tape that are standing higher than the rest of the wound tape. These strands of tape are referred to as "popped strands."

i

i

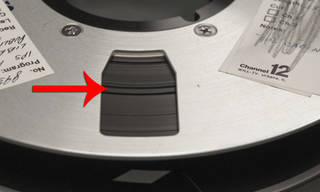

A tape will show popped strands if the tape is damaged or warped, if the tape has been stored without being completely rewound or fast-forwarded, or if the playback deck plays, rewinds, or fast-forwards in a less-than-uniform speed. Caution should be exercised when playing back a tape without a uniform tape pack, as it could indicate a problem that will be exacerbated by playing it back--sometimes with disastrous results. Checking the tape pack should be a step taken before playing back any tape.

Many institutions, including the Library of Congress, recommend storing all tapes (audio or video) in the fully fast-forwarded position. This can prevent tape pack issues while the tape is in storage. It will also force you to fully rewind a tape before playing it back (called "exercising" the tape), which can help keep a tape in good shape. Some institutions also create a schedule whereby all tapes that are in good enough condition are taken from the shelf and fully rewound and then fast-forwarded. Making it a point to periodically exercise tapes that are not exhibiting problems can help keep these tapes in good condition.
