Magnetic Tape Binder Breakdown

a.k.a. Polyurethane Binder Deterioration (Sticky Shed Syndrome / Soft Binder Syndrome)

The material that binds magnetic particles to a base tape film is called the binder. Other than a degrading acetate base, the polyurethane binder is often considered the weakest link when it comes to magnetic tapes due to an inherent vice broadly referred to as "Soft Binder Syndrome" or, more specifically, as "Sticky Shed Syndrome" if the signal is salvageable. Though from the late 1960s through the late 1970s polyurethane binders were employed with polyester magnetic tapes, tapes from the early 1970s through the early 1980s are especially at risk. Binder breakdown will harm not only the recorded media but your playback equipment as well.

NOTE: Each of the degradation forms detailed below are precipitated by one or more of the following: original tape formula, batch variations, and cumulative storage conditions (temperature, humidity, pollution, etc.).

Identification

Test for Sticky Shed Syndrome BEFORE attempting playback. To do this, slowly turn the reel and watch to see whether the tape unspools naturally from the pack or whether it sticks/lingers on the pack. The affected tape surface may exhibit a soft and gummy quality, and, on playback, will leave a dark brown residue on tape player components; this is a result of binder and back coating shedding. Do not subject an SSS-affected tape to playback.

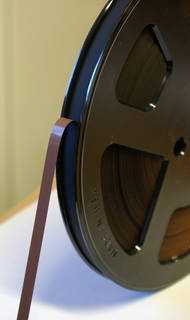

Sticky tape stuck to tape wind
Sticky tape stuck to tape pack. Image courtesy of Katrin Abromeit.

Most tapes with SBS will make an audible squealing sound during playback. Other telltale signs of SBS may include jerky and/or slowed tape movement during playback. At its worst, binder breakdown will prevent playback or cause tapes to distort due to high tension from playback. On direct inspection, simple SBS tapes will not shed or produce gummy residue to the extent that Sticky Shed Syndrome tapes typically do.

Gummy residue left on playback gear from failing binder material
Slight gummy residue left on playback components; this is due to polyurethane binder failure. Image by Flickr user DRs Kulturarvsprojekt, available under a Creative Commons Attribution ShareAlike license (CC BY-SA 2.0). Courtesy of the Danish Broadcasting Corporation.
Fibrous delamination residue left on playback equipment
Severe, fibrous delamination residue left after Agfa PE39 tape playback. Image by Karl-Heinz Frommolt, Naturkundemuseum Berlin.

Soft Binder Syndrome: Well-known manufacturers and types

Lists of known tape types are incomplete. Compiled from Hess, 2008; Casey, 2007.
* Considered to behave as SBS, not SSS; not treatable through incubation.

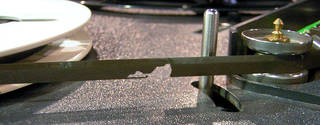

Delamination of magnetic oxide layer
Oxide layer peeling away (delaminating) from polyester back layer of a Sony magnetic tape. Image courtesy of Katrin Abromeit.
Localized delamination of Agfa PE39 magnetic tape. Image courtesy of Katrin Abromeit.

Cause

The polyurethane binder absorbs moisture from a humid environment through a chemical process called hydrolysis. The water molecules absorbed then cause the urethane to migrate to the tape surface, resulting in the aforementioned fatal errors that can hinder or even prohibit playback.

Solutions

A recovery method for tapes of the sticky shed variety has been to remove moisture from the binder by applying low heat to the tape for several hours (8+). "Baking" the tape can be destructive, and it is best done by a professional AV conservator or technician using a highly precise oven. Baking is only a temporary fix; but, if successful, it allows normal playback (without SBS defects) for weeks or months before reverting and becoming unplayable. In this time, one may easily transfer the recording to a stable format. Do not bake acetate tapes or tapes exhibiting lubricant loss (i.e. white residue).

A less risky, but far less immediate method of hydrolysis reversal is environmental conditioning. Simply place the tape in a low humidity environment—and wait for however long it takes for the effects of hydrolysis to recede.
