Ideal | Acceptable | |
---|---|---|
Temp. | 66°F (19°C) | 61-71°F (16-22°C) |
RH | 50% RH | 45-55% RH |
Ceramic objects are made from natural materials/clay mixtures that are pliable when wet and shaped into particular forms that are then dried and/or fired to become hard/solid objects. Ceramics may be formed using a variety of construction methods, including by hand, in a mold, or thrown on a wheel. Fired ceramics are fired one or more times to achieve various levels of vitrification (chemical fusion/bonding). This affects their porosity and permeability to liquids. Only when clay is fired at temperatures higher than 1652℉ (900℃) do the particles in the clay bond (a process called sintering) and become stronger. Full vitrification, which is the bonding of particles that results in the reduction of porosity, makes the clay more impermeable to water and occurs at even higher firing temperatures. While firing temperature largely determines the strength of ceramic items, surface treatments and construction methods also have an impact on the strength, fragility, and preservation of ceramics.
Ceramics are typically divided into three categories, based on the results that firing temperatures have on the material characteristics and strength of ceramic items: 1) unfired; 2) low-fired; and 3) high-fired. Unfired ceramics include adobe and mud brick; low-fired ceramics include earthenware and terracotta; and high-fired ceramics includes stoneware and porcelain. The higher the temperature at which the items are fired, the lower the porosity and the more vitrified they become. Unfired and low-fired objects are at risk of re-hydration because they are porous and not vitrified.
Unique properties may be achieved through the use of additives in the clay mixture as well as the application of surface treatments like glaze, to the object. Mixtures used to make ceramics include bulk clay, fluxes, and non-plastic additives. The bulk clay is mixed with water so it can be formed into objects. The higher the temperature at which bulk clay is fired, the harder and more brittle it becomes. Fluxes, such as soda, mica, potash, and lime lower the temperature at which the object needs to be fired. Non-plastic additives are added to reduce shrinkage and the potential for cracking in the kiln, but this increases the porosity. Surface treatments can be used for decoration, but vitrified glazes can also be applied to porous ceramics to make them waterproof.

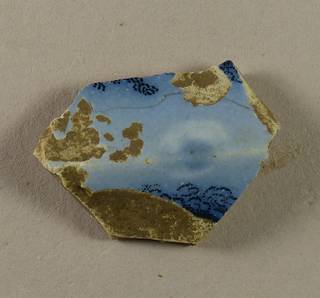

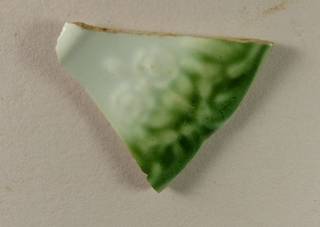

Generally, archaeological or buried ceramics are more unstable and at higher risk for further deterioration. Ceramics that have been buried may show distinct types of deterioration, evidence of which can help users identify whether they are working with archaeological or non-archaeological ceramics. Porous materials (like some ceramics) that have been buried, may later display signs of salt efflorescence, which appears as a white haze on the surface of a ceramic object. Ceramics can absorb soluble salts from the soil in which they were buried, so they are particularly susceptible to this type of damage. Soluble salts that have been absorbed by porous ceramics can react to changes in humidity, either becoming soluble in high humidity or crystallizing in low humidity. Over time, the movement of soluble salts will cause the decorative surface or the body of the ceramic to crack or crumble. Soluble salt damage is more likely to be seen on more-porous unfired and low-fired ceramics. High-fired ceramics that are fully vitrified, like porcelain, are waterproof and thus impervious to damage from soluble salts. Although non-archaeological objects may absorb soluble salts throughout their everyday use, visible salt efflorescence on a porous ceramic item can be a clue that the item was once buried. Knowing the age and history of the object can also help with identification. Read more on Archaeological Objects in the Museum Objects in General section of the Collection ID Guide.
Adobe and Mudbrick

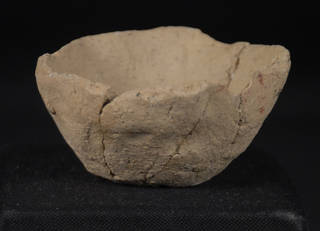

Adobe is a clay mixture that has been dried to harden, but is not fired. Fibrous materials (like straw) are often mixed into the adobe clay in order to prevent cracking during curing/drying. Similar to adobe, mudbrick is often made of a mixture of clay, sand, and silt (with fibrous materials added to prevent cracking) that is dried and then shaped. For centuries, unfired ceramics were primarily used for building materials (particularly in arid and semi-arid climates), but they were also used to make decorative and utilitarian items, including cuneiform tablets.

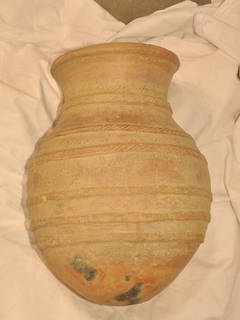

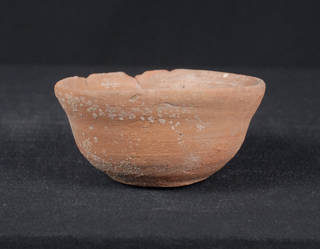

Terracotta
The term “terracotta” refers to any kind of fired clay, but more specifically it is an unglazed ceramic object made from coarse, porous clay. Terracotta has been used worldwide since the Early Bronze Age (3000 BCE). Generally terracotta ranges in color from red to dull ochre, and Is typically left unglazed. Like earthenware, terracotta is typically fired at lower temperatures, between 1060-1162°C. Terracotta is generally used for utilitarian objects due to its inexpensiveness and durability.

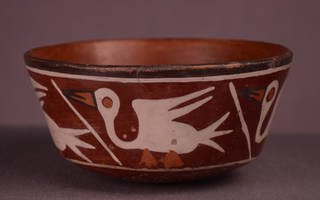

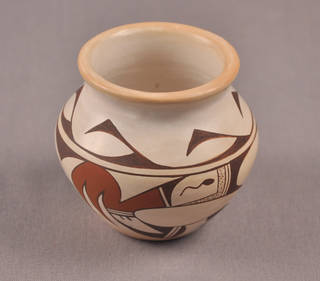

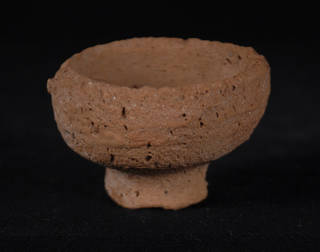

Earthenware

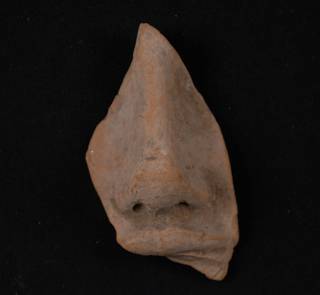

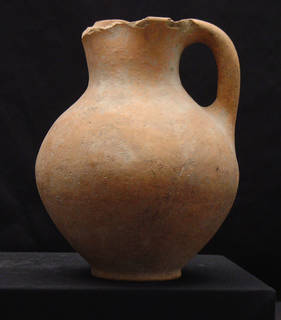

The two (main) types of glazed earthenware are: 1) Lead glazed: when a transparent lead glaze is applied to the body; and 2) Creamware: when an opaque tin glaze is applied to the body. Creamware is sometimes referred to as "tin-enameled, tin-glazed, majolica, faience, or delft.

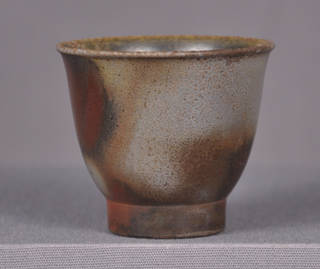

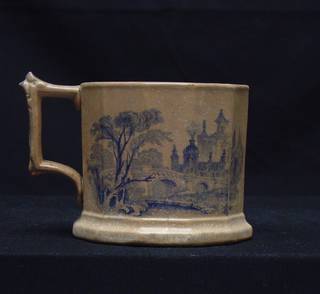

Stoneware

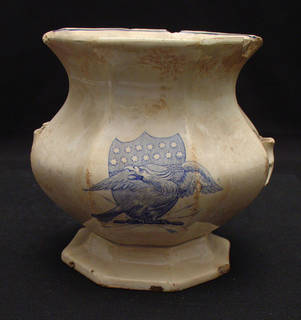

Stoneware is partially vitrified pottery that is less porous than earthenware. Typically stoneware is fired between 2012 and 2462°F (1100 and 1350°C), so the end product is partially vitrified. It can range in color, but is often brown, pale yellow, or gray in color. Stoneware is harder and denser, and does not scratch as easily as earthenware. Stoneware will make a distinctive “ringing” sound when tapped. When looking at a cross section of stoneware, there is less of a distinction between the clay body and the glaze then there is in low-fired ceramics. Stoneware is usually opaque, but can be quite thin and thus somewhat translucent. The earliest stoneware dates from China, ca. 1400 BCE.
Porcelain

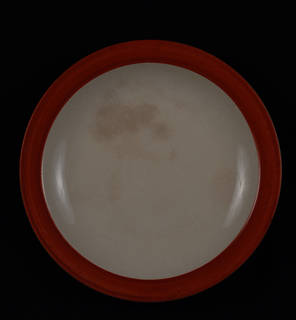

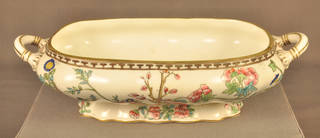

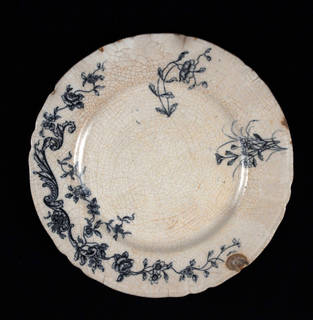

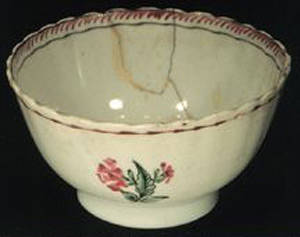

Porcelain is a hard, vitrified ceramic with a fine-grained, white, translucent body. Of all pottery types, it is fired at the highest temperatures, typically above 2372°F (1300°C), making it totally non-porous and impervious to water even when left unglazed. The main ingredient of porcelain is a fine-grained clay called kaolin, which can be molded easily and formed into delicate and complex structures. Porcelain can be very thin and has a higher pitch ring than stoneware when tapped, and there is almost no visible distinction between the glaze and the body of the ceramic. The three main types of porcelain are hard-paste, soft-paste, and bone china. Hard paste porcelain is the hardest and least porous. Bone china is more durable than soft-paste but softer than hard-paste.

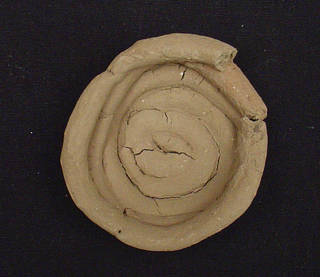

By potter’s wheel
Objects are shaped with the assistance of a turning wheel. The clay object sits atop the wheel while the potter uses his or her hands to give shape to the object while the wheel turns, giving the object a uniform shape and thickness.
Molded/mold-pressed
Objects that cannot be shaped by hand or with a wheel can be shaped with the use of a pre-shaped mold.
Glazes
Glazes are thin, glassy, vitrified layers on the surface of a ceramic object. Glazes can be produced by firing on a coating applied directly to the object, firing the object in the presence of alkali vapor, or as a result of slag attack on a refractory material. Glazes can be partially crystalline. The word “glaze” may also refer to the prepared mixture, either the powder or the powder suspended in water, prior to application.
Slip or Engobe
Slip or Engobe is a thin layer of a liquid clay and water mixture that is sometimes applied over the clay body before the first firing. Slip/engobe is usually matte, but can be burnished to a smooth, shiny appearance. Sgraffito is a decorative technique in which patterns are scratched through colored engobe applied to dried ceramics to exposed the clay body.
Like many museum objects, ceramics are generally fragile and at risk to damage from mishandling. Unfired and low-fired ceramics are porous, so they are easily scratched and permeable to liquids. Ceramics fired at higher temperatures are less porous, but they are harder and more brittle, so more susceptible to impact damage. Ceramics’ inherent risks are exacerbated by manufacturing flaws and/or by deterioration/damage due to improper storage and mishandling. Archaeological or buried ceramics are also more unstable and at higher risk for further deterioration.
Flaws that can occur during the manufacture are a sign that an item may be unstable, and thus prone to further damage.
Flaws that can occur in the glaze:
Deterioration and damage of ceramic objects may also be caused after manufacture, by use, exposure to the elements, poor handling, and bad repairs. Often, deterioration and damage result from a combination of these causes. Signs of flaws and damage indicate that an item may be unstable, and thus prone to further damage.

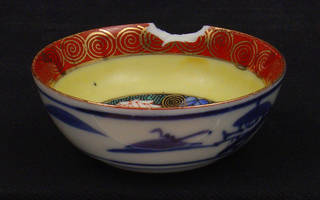

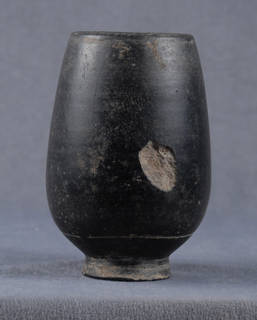

Impact damage: Ceramics can be easily damaged by the impact of a fall or resulting from poor handling. While the surface of unfired and low-fired ceramics are more permeable to liquids, low- and unfired ceramics are typically tougher (and thicker) and not as brittle as high-fired ceramics. Porcelain and other high-fired ceramics, while less porous, are harder and more brittle; they may break or chip more easily as a result.

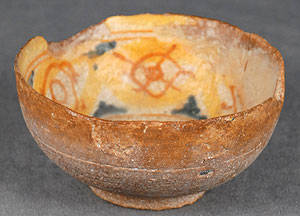

Functional Damage: Nicks, scratches, dings, cracks, or chips caused by normal use of an object (vase, pitcher, plate, etc.). This type of damage is be expected in functional ceramics, however severe damage can compromise the integrity of the item.
Abrasion: Contact with other materials, for example, stacking ceramic vessels or silverware scratching, can abrade the surface of all types of ceramics. Lower-fired ceramics have glazes that are less chemically bonded to their clay bodies, so they are more susceptible to scratches. High-fired ceramics like porcelain, are less susceptible, but not not immune to abrasion damage.
Water: Low-fired ceramics are porous and will absorb water. Some can rehydrate if exposed to water or wet conditions. Gypsum (hydrated calcium sulphate) and calcite (calcium carbonate) will dissolve in water; if an object is buried or exposed to water, the gypsum and/or calcite in the clay can dissolve over time. A stable environment will cause gypsum and calcite to dissolve much more slowly, as they become surrounded by saturated salt solution.

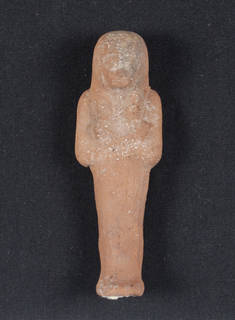

Soluble salts: Contact with soil, food, or chemicals may cause ceramics to absorb water soluble salts, which can then re-crystallize and cause damage to the body and/or surface of the ceramics. Soluble salts react to changes in humidity, either becoming soluble in high humidity or crystallizing in low humidity. A white haze on the surface of a ceramic object is indicative of soluble salts in the body of the object. Over time, the movement of soluble salts will cause the decorative surface or the body of the ceramic to crack or crumble. Archaeological or buried ceramics are particularly susceptible to this type of damage, as they absorb soluble salts from the soil in which they are buried. Non-archaeological objects may absorb soluble salts throughout their everyday use. Soluble salt damage is more likely to be see on more-porous unfired and low-fired ceramics. High-fired ceramics that are fully vitrified, like porcelain, are waterproof and thus impervious to damage from soluble salts.
Staining and Encrustations: Ceramics with crazing or chips in their glazes can become stained by food and other materials that may seep through the breaks in the glaze and stain the porous ceramic below. Ceramic vessels may also become stained by the residue of whatever material they once contained (i.e., oil or food). In addition, ceramics can become stained when they come in contact with iron (when buried) or other metals, for example: metals supports from a previous repair.
Light: Ceramics are typically not sensitive to light.
Acid attack: If a ceramic item is in long-term contact with an acidic substance, the acid can dissolve calcareous (composed of calcium carbonate) fillers in the body of the item and leave the object looking porous. Some glazes may lose lose their transparency a the result of acid deterioration. Crystalline or ‘artistic’ glazes, especially those which contain metal compounds, are susceptible acid attack. Stoneware and porcelain glazes, which have fewer metals, are less susceptible to acid attack.
Alkaline attack: Is a type of deterioration that occurs with glass, including ceramic glazes, which are chemically like glass. More likely to occur in humid and warm environments, alkaline attack may result in the surface of the glaze changing color or appearing iridescent.
Lead sulphide blackening: Under certain conditions, the growth of sulphite reducing bacteria associated with decaying plant and animal tissues may cause the blackening of lead glazes.
Fire damage: Exposure to high temperatures during a fire will have more of an impact on low-fired ceramics and glazes may change the microstructure of ceramic objects; the temperature at which these changes can occur is related to the initial firing temperature of the object.On-glaze decoration will be affected at lower temperatures than the glaze itself. Unfired decorations will be affected at much lower temperatures.

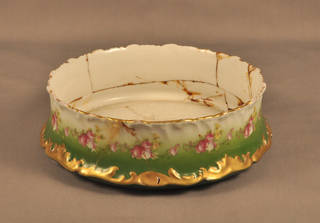

For more information on previous repairs of Object materials, see previous repairs in general objects.
While ceramics are not necessarily sensitive to light or minor changes in humidity and temperature, significant climate swings can cause deterioration. Ideally, ceramics should be stored in the following environment: Temperature: 66°F (19°C) and RH: 50%, plus or minus 5%, but never above 60%.
Ceramics are best handled infrequently, as most damage is the result of mishandling. When handling is unavoidable, since high-fired and glazed ceramics can become more slippery when wearing cotton, it is advisable to use nitrile gloves or gloves with friction dots. As with all objects, ceramics should be stored on shelves at a safe distance from one another and should not be stacked unless absolutely necessary (and if stacked, should have a layer of inert foam or acid-free tissue between layers). Ceramic objects should only be stored on shelves that are easily accessible, and they should be placed in closed shelving, boxes, and/or covered with acid-free tissue to prevent dust buildup and reduce the need for cleaning. Never pick up a ceramic object by a protruding part (even if that protuberance is a handle) -- lift and support the item underneath its center of gravity. For more information on storage and handling of objects please refer to the following sections in the Museum Objects in General section: Storage of Objects and Handling Objects
Ideal | Acceptable | |
---|---|---|
Temp. | 65°F/18°C | 65-72°F (18-22°C) |
RH | Archaeological: 42% RH Non-Arhcaeological: 35% RH |
Archaeological: 42-55% RH Non-Arhcaeological: 35% RH and lower |

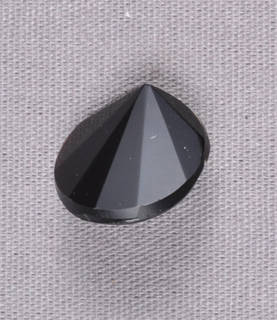

Glass is an inorganic, amorphous solid material. The primary component of glass is called a former (most often silica), which is then combined with a flux material (such as soda or potash), stabilizer material (like calcium carbonate), and modifier material (like magnesium). Glass is found in many forms, both utilitarian and decorative, and while it is generally transparent, it can also be translucent, opaque, and/or colored.
Hardness and rigidity at normal or average temperatures, plasticity and moldability at elevated temperatures. Resistant to weathering and chemical attack, with the exception of hydrofluoric acid. Obsidian, a type of igneous rock, holds the properties of glass and is considered “volcanic glass,” however, in the PSAP obsidian is covered under stone. Further information on obsidian can be found in the Museum Objects in General section on stone. It can be difficult to distinguish between obsidian (stone) and glass, however obsidian is usually grey, black or brown and is chipped into some intentional form.

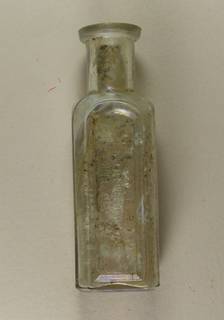

Generally, archaeological or buried glass is more unstable and at higher risk for further deterioration. Glass that has been buried may show distinct types of deterioration, evidence of which can help users identify whether they are working with archaeological or non-archaeological glass. Glass that has been buried often exhibits signs of iridescence-- rainbow-colored, shiny, and flaky layers on the surface as a result of its exposure to moisture. Archaeological glass is also more likely to develop dulling or frosting, in which previously clear glass turns cloudy or shows a network of cracks that appear like patterns of frost on a window. In addition, obsidian, a shiny igneous rock that is considered “volcanic glass," is often found in archaeological environments. Read more on Archaeological Objects in the Museum Objects in General section of the Collection ID Guide.
Mouth Blowing: In glass blowing, blobs of molten (around 2400°F or 1316°C) viscous glass are gathered onto the end of a pre-heated blowpipe. The glass is then rolled onto a flat sheet of steel or marble called a “marver,” which helps to shape the item. Next, air is blown into the glass, creating a bubble that can be increased, decreased, or to which additional glass can be added to form the piece. Glass can also be blown into a mold. Glass blowing was first seen in Rome in the mid-1st century BCE.

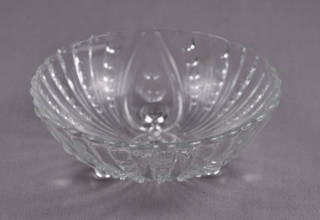

Glass Pressing: A blob of molten glass is placed into a mold (typically a metal mold) and then pressed into the correct shape by a plunger or “follower.” This technique was created in the United States between 1820 and 1830.

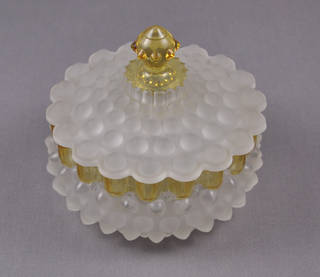

Pate de Verre: Frit, a mixture of granulated silica and flux materials, is mixed with gum arabic binder to form a paste, which is then pressed into a mold and fired.
Core dipping/winding: The oldest technique for glass shaping. A core of straw or dung is dipped into molten glass. The core and glass are then rolled over a smooth surface to shape the item. When the item is formed and glass is cooled, the core is removed.
Lostone-wax: Lostone-wax casting, or cire perdue, is a technique borrowed from metalworking. A model is created with wax and then encased in plaster or clay. When heated, the wax melts through vents in the plaster/clay. Once dry, this becomes a mold into which molten glass can be poured, pressed, or blown.

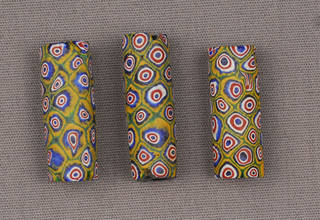

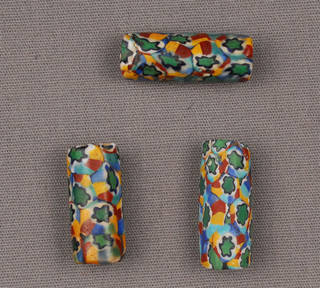

Millefiori: Italian for “thousand flowers,” this method involves the rolling together of long, thin (and typically multi-colored) rods of molten glass. These multi-colored rods or canes are then cut into small, round pieces called “murrine.” Murrine are sometimes used as beads in jewelry or melted together to achieve bright, colorful patterns. Millefiori is seen as early as the 2nd century in Egypt, but it appears the technique was lost by the 18th century before its revival in the 19th century, primarily in Italy, France, and England.
Cutting: A turning wheel (often made of stone, cast iron, or wood) bites into the surface of the glass to create a design under a continuous stream of water.

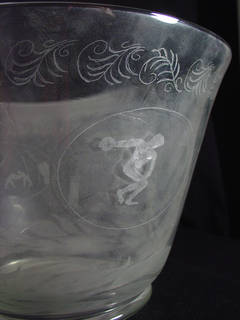

Engraving: A turning wheel made of copper or stone bites into the surface of the glass to create a design under a stream of slurry or grease, often oil mixed with abrasive minerals, such as emery or carborundum.
Glue Chipping: Fern- or frostone-like patterns are created by applying hot animal glue to the sandblasted surface of clear glass. As the glue dries, it shrinks, which removes or “chips” flakes of glass from the surface.
Acid Etching: Decoration is produced through exposure of the surface of the glass to hydrofluoric acid. The glass item is first covered in an acid-resistant material, sometimes a wax, before the acid is used to scratch through that material. The item is then immersed in hydrofluoric acid. A patent for the acid-etching process was filed in 1857 by Richardson’s, an English glass company.
Sandblasting: Designs are etched onto the surface of glass through a high-pressured stream of sand and air. The final results are similar to engraving, but bolder designs are possible through sandblasting.
Glass is typically stable, but highly fragile, so is at moderate risk for breakages. Archaeological or buried glass is already partially deteriorated, so is at higher risk for further damage. The inherent fragility of glass is exacerbated by deterioration or damage due to and improper storage and mishandling. Glass with surface decoration, visible deterioration, and/or evidence of previous repairs is more unstable and fragile.Though certain chemical compositions have higher or lower inherent risk, without chemical analysis, it is not possible to determine the composition of an individual piece of glass. As a result, it is best to treat all glass with care.
Striae, Cords, and Stones: Lower-quality glass may include striae (thin, hair-like lines) or cords (thicker, fiber-like lines) throughout the product. There are also often inclusions of foreign bodies called “stones,” which are typically undissolved batch materials (sand) or accidental inclusions (dirt or stone). Striae, cords, and stones do not typically weaken the glass.
Seeds and Blisters: There are also often “seeds,” which look like air bubbles. Seeds are sometimes intentionally included by the glass maker and are typically not risk factors. However, whether intentional or accidental, a cluster of seeds may create a weak point in the glass that should be handled carefully. When a seed occurs at the surface of the glass, it causes a visible and often fragile bubble called a “blister.” When a blister bursts, it leaves behind a divot in the glass that is especially sensitive to weathering.
Most damage to glass occurs as a result of handling or cleaning. Glass objects should be handled as infrequently as possible! Items may also show evidence of past use or impact, like scratches, nicks, dings, chips, and bruising--a ring of cracks that stems from a powdery, protruding “cone” of glass. Archaeological and previously repaired glass is at highest risk for damage and deterioration. Look for signs of past repair(s), such as visible yellowed adhesive or metal joints holding breaks together, which indicate that the glass structure is weakened.

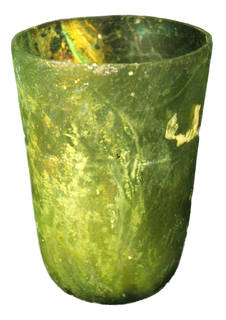

Weeping: Weeping is the result of unstable composition, typically a lack of a stabilizer and excess of alkali, and is exacerbated by fluctuating relative humidity. This form of deterioration appears as droplets of liquid on the glass surface, and is caused by water vapor in the air that leaches components from the glass. If left unattended, these droplets of moisture destabilize the surface level and can cause damage to adjacent materials. Weeping is typically seen in 17th and 18th century glass.
Crizzling (Crisseling): Crizzling is a network of fine cracks/fissures and flaking (sometimes called “surface crazing”) that creates decreased transparency on the surface of glass. When crizzling is severe, the glass appears cloudy and damaged areas may crack away from the body of the item entirely. Crizzled glass should be handled as infrequently as possible, since surface layers may crack or flake off during handling.

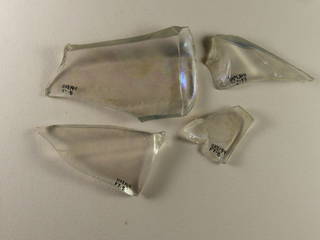

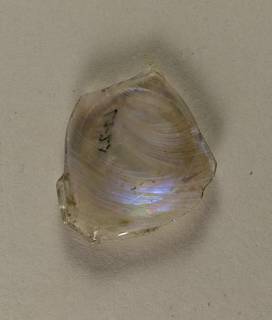

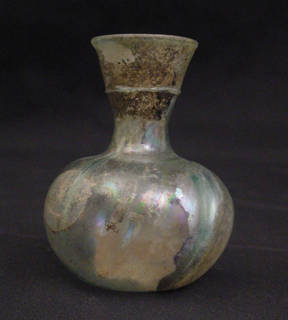

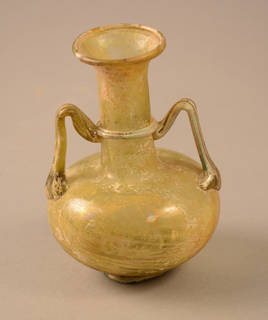

Iridescence: A rainbow-colored, shiny surface layer or layers, sometimes called a “degradation layer,” resulting from exposure to moisture and often seen in archaeological/buried glass. When advanced, the iridescent layer(s) may flake off, along with the surface layer of glass. Though a sign of deterioration, iridescence is sometimes valued by collectors. Ancient Roman glass is nearly always iridescent.
Functional Damage: Nicks, scratches, dings, cracks, or chips caused by normal use of an object (glass, vase, pitcher, plate, etc.). This type of damage is be expected in functional glass, however severe damage can compromise the integrity of the item.
Solarization: Colorless glass, typically containing manganese dioxide, will turn purple or brown when exposed to sunlight or ultraviolet rays over a long period of time. Manganese dioxide was commonly used in glass before 1915, and so many (though not all) examples of solarization are occur with glass made before that time. Note that some modern glass traders will use intense UV rays to create artificial solarization, achieving the appearance of age and therefore value.
Biological: Archaeological glass may exhibit growth of mosses or lichens. It is unlikely that these growths attack the glass directly, but moisture is often trapped between the growth and the surface layer, which can contribute to deterioration.
Bruising: A ring of cracks that stems from a powdery, protruding “impact cone” of glass. Bruising is typically the result of a blow/impact to the glass, and the cracks will continue to fracture and weaken the glass.
Strain Cracking: An item with strain cracking has a series of intricate multi-directional cracks that will eventually appear “sugary” as deterioration continues.
Frosting: A network of small cracks on the surface of the glass that look like frost on a window pane. When frosting is advanced, moisture in the cracks may be the only material holding the glass together. Glass with frosting deterioration is very susceptible to cracking and breaks.
Dulling: A form of weathering in which the previously transparent surface layer becomes cloudy. Weathered glass is extremely fragile and should be not be handled unless completely necessary. Cleaning can severely damage weathered glass.
Staining: The surface of glass can be stained by liquids or materials that were once contained in a glass vessel, being exposed to moisture or minerals during burial, from plant activity or deterioration, or from pest residue.
Relative Humidity (RH) for glass objects can be complicated. It is generally accepted that the best RH for glass is between 40-55%; however, new (non-archaeological) glass or glass that has been well-preserved is best kept at 35% RH or lower. Glass that has been exposed to moisture (such as archaeological glass) will dry out if housed in a low RH environment. It may become brittle and typically requires a higher RH, often between 42-55%. Regardless, RH should be kept constant, as fluctuation is destructive and can result in weeping or crizzling. Care should be taken to protect glass from light, which is sometimes susceptible to ultraviolet and infrared light in particular; a maximum of 300 lux is recommended. While most glass may be kept at 65-72°F (18-22°C), rapid changes in temperature can cause expansion and breakage, and should be avoided.
Glass is best handled infrequently, as most damage is the result of mishandling or cleaning. Handle glass objects as little as possible. When handling is unavoidable, since glass can become more slippery when wearing cotton gloves, it is advisable to use nitrile gloves or gloves with friction dots. As with all objects, glass items should be stored on shelves at a safe distance from one another and should not be stacked unless absolutely necessary (and if stacked, should have a layer of inert foam or acid-free tissue between layers). Glass objects should only be stored on shelves that are easily accessible, and they should be placed in closed shelving, boxes, and/or covered with acid-free tissue to prevent dust buildup and reduce the need for cleaning. Never pick up a ceramic object by a protruding part (even if that protuberance is a handle) -- lift and support the item underneath its center of gravity. For more information on storage and handling of objects please refer to the following sections in the Museum Objects in General section: Storage of Objects and Handling Objects
Ideal | Acceptable | |
---|---|---|
Temp. | 60-75°F (15-24°C) | |
RH | 35-60% RH |

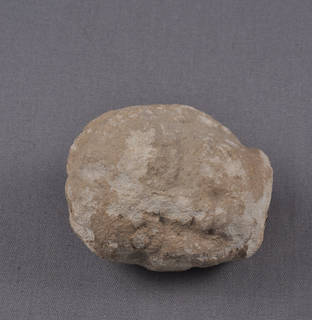

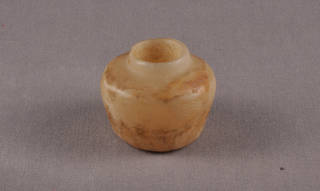

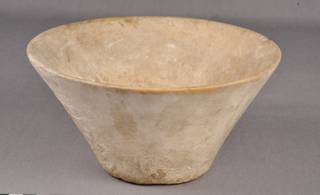

Stone varies in composition, porosity, grain structure, color, sheen, and hardness. It can be shiny or dull, have high or low porosity, and contain large or small grains, all depending on the materials in its composition. If the porosity is high (this may be visible), the stone is at higher risk from weathering agents and attack from pollution.
Geologists typically classify stone by how the rock was formed in the earth (Igneous, Sedimentary, or Metamorphic). But for preservation purposes, the chemical origins of stone are less relevant. What matters most when considering how best to preserve stone objects is whether the stone is soft or hard.

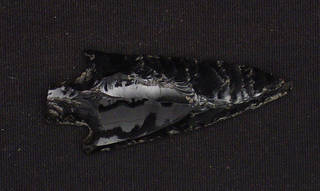

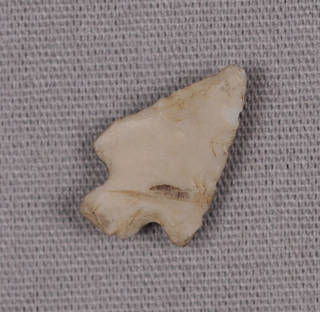

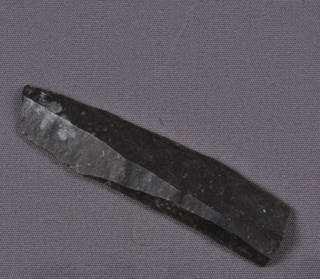

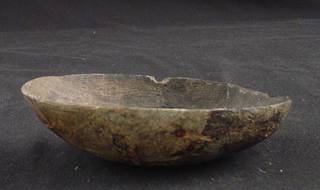

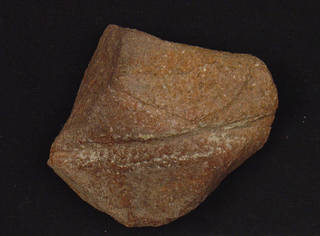

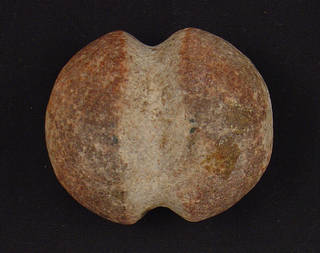

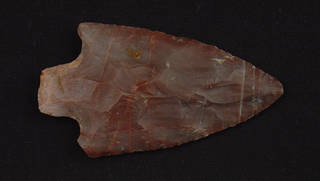

Types of stone commonly used for hand-held archaeological artifacts (architectural stones excluded) can typically be grouped into 2 general categories:
Archaeological stone may exhibit distinct types of deterioration. Porous stones that have been buried, may later display signs of salt efflorescence, which appears as a white haze on the surface of the stone. Salts absorbed by porous stones that have been buried can react to changes in humidity, either becoming soluble in high humidity or crystallizing in low humidity. Over time, the movement of soluble salts can cause the surface or body of the stone object to crack or flake. Although non-archaeological objects may absorb soluble salts throughout their everyday use, visible salt efflorescence on a porous stone object can be a clue that the item was once buried. Knowing the age and history of the object can also help with identification. Read more on Archaeological Objects in the Museum Objects in General section of the Collection ID Guide.

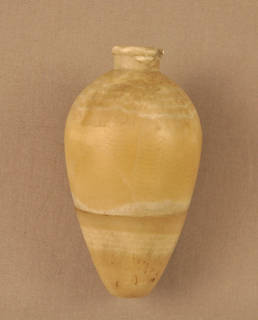

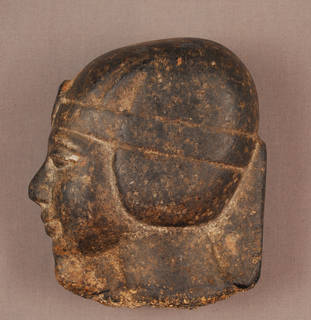

Types of Stone Often Found in Museum CollectionsIn general, stone is a low-risk material if it does not exhibit signs of deterioration. However, most stone is brittle and will break if force is applied. Soft and porous stones (such as limestone) are at a higher risk to scratching and other types of damage than hard and non-porous stones. Stone objects with previous repairs, deterioration, or growths are also at higher risk.
Most damage to stone objects is the result of poor handling, but stone is also susceptible to environmental damage. Stone can be hard and brittle or soft and easily scratched. Stone that is porous can also be damaged by dust, which is hygroscopic and will attract additional dust and dirt that will further damage the surface of an item.
Salt efflorescence is a common form of deterioration in archaeological stone. This is the process in which soluble salts that have been absorbed into the pores of stone shift and rise to the surface, creating pressure that results in loss of stone. Stone affected by salt efflorescence has a powdery film or white crust on the surface layer, which is exacerbated by fluctuations in RH. Other crusts, often white or black, are also signs of exposure to air pollution and will cause brittleness. Visible cracking, flaking, or loss of stone in grains is a sign of weak or weakening stone. Divots or pits in the stone typically indicate weathering. Additionally, mosses, lichens, mold, and fungi may grow on stone. As a result of fluctuating RH, these growths may shrink, resulting in pressure on and breakage of layers of stone. Avoid extended exposure to direct light--300 lux is a recommended maximum. When stone is on display, it is best to filter for UV light (if possible).
Differential Stress: A decay mechanism caused by changes in humidity, temperature, or weather that react with the surface but not the interior of the stone. Typically results in “shearing,” the loss of stone in grains, pieces, or flakes.
Cracking: Clearly visible fissures in the stone, separating one part from another. Often the result of weathering or inherent weakness.
Deformation: Most often seen in marble, deformation occurs when a stone object warps or bows from its intended shape without losing structural integrity. A deformed stone item should still be treated carefully to avoid breaks.
Blistering: Raised bubbles on the surface of stone. While not a structural issue in itself, blistering can be a sign of impending salt efflorescence and can lead to surface loss.
Salt efflorescence: Is a powdery white film/hard white crust caused by the movement of soluble salts that were previously absorbed by the pores of a stone. Salts that have leached into the stone while it was buried or exposed to the elements will rise to the surface when the stone dries. When water evaporates, the salts are left behind and crystallize. Often seen in archaeological stone, salt efflorescence can be caused by prolonged exposure to air or soil. Stone with higher porosity is more susceptible to salt efflorescence. The crystallization process causes force, which results in loss of stone through spalling (substantial flaking) or in the formation of a fine powder. This can also occur as subflorescence under the surface of the stone. Salt efflorescence is typically not reversible and it can be made worse by storing stone in environments with fluctuating RH.
Crust: Transformation of the outermost layer of stone, resulting in extreme brittleness and color change (often black or white) as a result of air pollution. Occurs most frequently in stone that has not been exposed to water (which would wash away the crust components). Crust cannot be removed without compromising integrity of stone itself. Crust damage is often found on carbonate or silicate stone.
Granular deterioration: Or disintegration; the loss of stone in granules. Granular deterioration can affect only the surface or occur several centimeters deep into the stone.
Alveolization: A result of weathering, alveoles are typically symmetrical cavities in the stone, usually a soft stone such as limestone. They sometimes form an interconnected “honeycomb” pattern.
Bacteria and fungi: Long-term growth of bacteria on the surface of stone may lead to a colored patina. Sometimes this is protective, but it can become destructive over time. Biofilms (films composed of bacteria or fungi) can form and are not in themselves destructive. However, they are susceptible to growth and shrinkage cycles as a result of change in humidity and temperature, so this cycle can create pressure and therefore fracture the surface of the stone.
Lichen growth: Round patches with a soft/powdery/leathery appearance. Often grey, yellow, orange, green, or black, lichens are aggressive weathering agents with the ability penetrate the stone deeply. Lichen’s tendency to expand and contract in response to changes in humidity can weaken and damage the surface of stone.
Mold: Fuzzy/downy patches in a variety of colors (often black, grey, or white). Mold can permeate the surface of the stone and create mechanical and chemical damage. High RH encourages mold growth.
Dust and dirt: In porous stones, dust and dirt can be almost absorbed by the stone. Once this happens, dust and dirt can become difficult to remove and can cause stains. Dust is hygroscopic and will attract additional dust and dirt that can further damage the surface of stone.
Although most stone can be safely kept at temperatures under 80°F (26°C), storage in temperatures between 60-75°F (15-24°C) with an RH between 35-60% is preferred, since some stones can crack in low humidity.
Most damage to stone objects results from careless handling. Remember that stone is typically heavy and dense, and can be much heavier than it looks! Use an adequate number of people and adequate carts to transport stone objects. Since oils and dirt from the skin can be absorbed by certain types of stone, wearing gloves is recommended during handling. Smooth stone can be slippery when wearing cotton gloves, so nitrile or latex gloves should be used. Gloves with friction dots can be used for hard, slippery stone, but they should not be worn when handling softer stone since the friction dots can leave marks in the surfaces of soft stone. As with all objects, stone items should be stored on shelves at a safe distance from one another and should not be stacked unless absolutely necessary (and if stacked, should have a layer of inert foam or acid-free tissue between layers). Large or heavy stone objects should be stored on shelves at waistone-level or below, to make them easier to access and move onto a cart. Stone objects should be placed in closed shelving, boxes, and/or covered with acid-free tissue to prevent dust buildup and reduce the need for cleaning. For more information on storage and handling of objects please refer to the following sections in the Museum Objects in General section: Storage of Objects and Handling Objects
Ideal | Acceptable | |
---|---|---|
Temp. | 65°F (18°C) | Below 65°F (18°C) |
RH | Stable Corrosion: 50% RH Unstable Corrosion: 35% RH |
45-65% RH |
Metals are naturally occurring elements found in the Earth’s crust. They typically are not found in their pure forms, but rather as sulfides and oxides. Their distinct properties have made them useful for a variety of purposes. The term “metal” is used to describe any material with metallic properties. In their use by humans, metals have been mixed into alloys in order to make them better suited to particular uses. As such, many alloys are typically called “metals,” even though they may also contain non-metal elements.
All metals share a set of properties that distinguish them from other elements. These are conductivity, ductility, malleability, and luster.

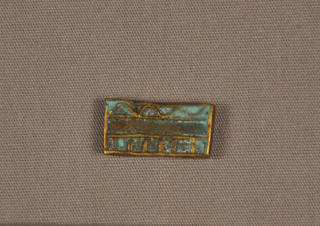

Patina is the visible product of the chemical reaction that appears as a coating on the surface of a metal object. There is unintentional and intentional patina. Unintentional patina is the product of natural deterioration and corrosion. Intentional patina is the product of a similar, but purposeful, process.

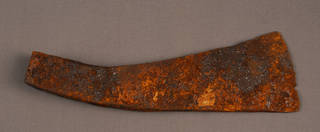

There are two types, or states, of corrosion:

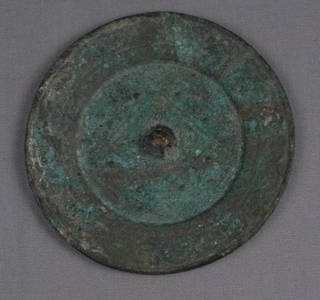

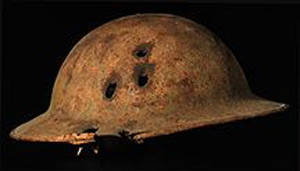

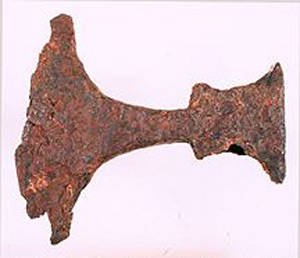

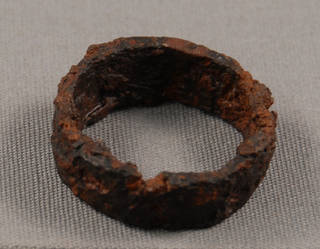

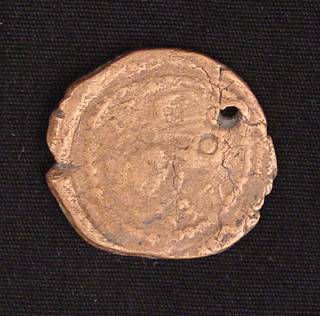

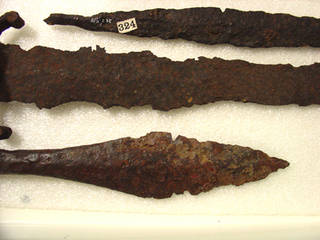

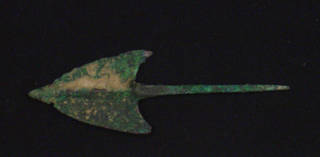

Metals that have been buried will be corroded with either thick layers that form a crust on the surface of the metal, or thinner more regular layers of corrosion. Typical archaeological metals include iron (wrought and cast), copper and copper alloys (brass and bronze), zinc, lead, and tin. The type and color of corrosion may give clues as to the type of metal beneath (e.g., copper corrosion is typically blue/green, while iron corrosion is usually yellow/brown/orange in color). Read more on Archaeological Objects in the Museum Objects in General section of the Collection ID Guide.

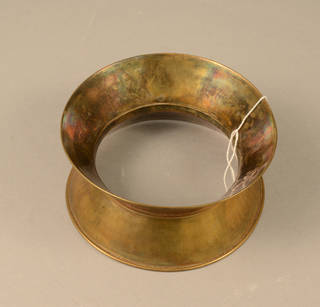

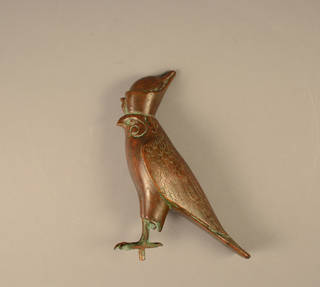

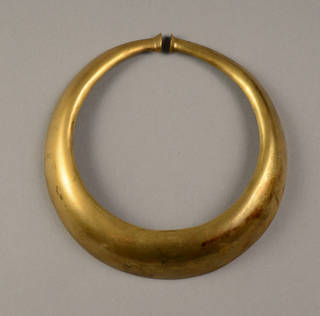

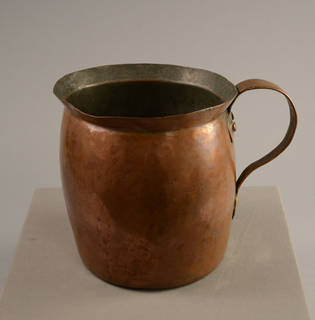

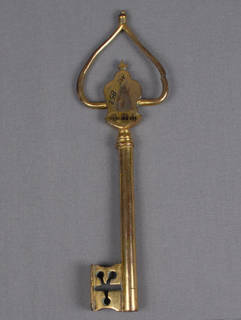

Copper is a non-magnetic metal that is red or pink when pure and whose alloys are shades of red, yellow, and orange. Copper is used to make coins, roofing, cookware, pipes, and other utilitarian items.

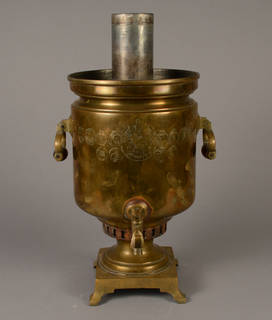

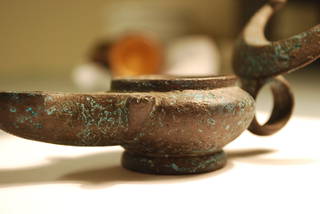

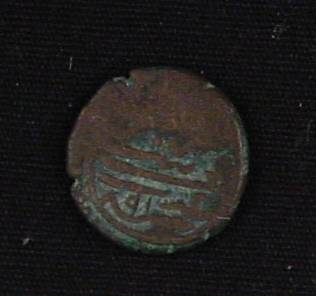

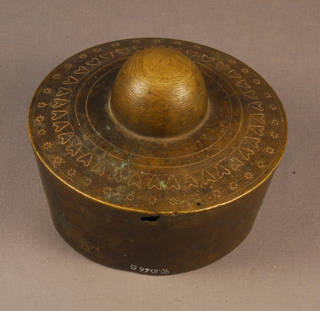

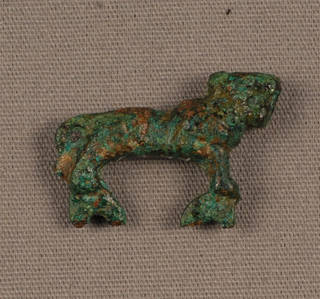

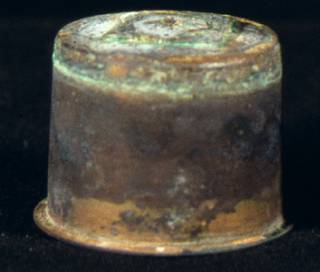

Corrosion of copper and copper alloys: Copper and polished brass have black patina and tarnish. More serious corrosion is caused by organic acids reacting with the copper. These corrosion products are green or blue-green. Fingerprints can stain copper and copper alloys. Bronze objects that have been buried can develop light green corrosion spots due to the accumulation of salt on the surface. This is called bronze disease.
Toxicity: Copper and copper alloys are typically not toxic to humans. They can, however, be harmful in high doses. Ingestion of large amount of copper salt or accidental inhalation of copper fumes can be dangerous. Some copper alloys and compounds that can pose danger have been used in pipes and wood preservatives, such as lead-containing copper alloy pipes and chromated copper arsenate.

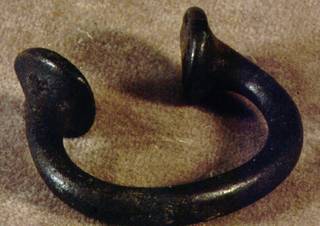

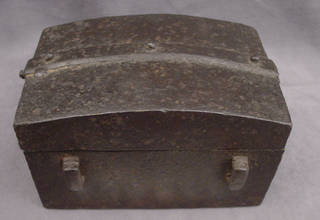

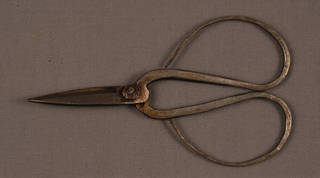

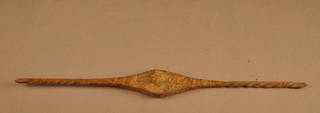

Iron is a silvery-grey, magnetic metal.

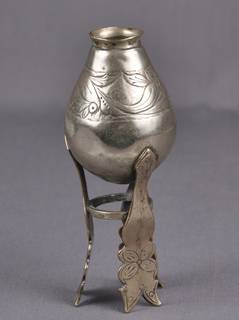

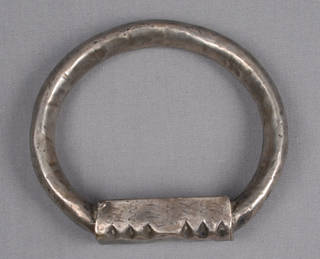

Silver is a grey, non-magnetic metal that is highly reflective when polished. Silver salts are light-sensitive and are widely used in photography. Silver itself, both in alloy or when plated onto an object, is widely used for fine utilitarian objects and jewelry.

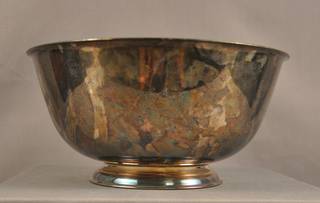

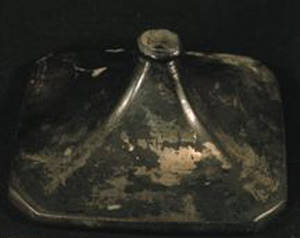

Corrosion of silver: Severe silver tarnish is black. Thin, less severe tarnish is yellow or rainbow-tingeded. Silver tarnish is caused by contact with sulphur-containing gases. Silver is also easily stained by fingerprints.

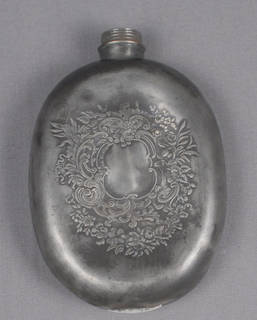

Tin is a silvery-grey, non-magnetic metal that is commonly alloyed with other metals.

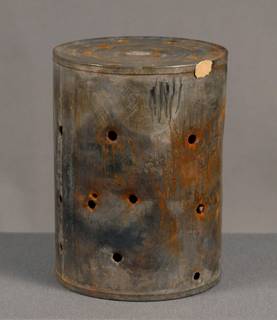

Corrosion of tin: Tin can corrode when exposed to moisture, and its corrosion products are white or black. Leaded pewter will tarnish grey. Tin-plated iron can rust, despite the plating, so these objects should not be exposed to changes in relative humidity.

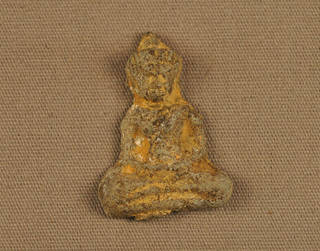

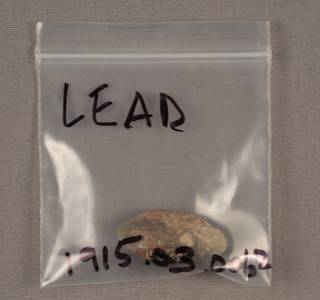

Lead is a dull silver-grey metal that cannot be polished. It is non-magnetic and very heavy. It is soft and easily cast with a low melting point. It has often been used for weights, small objects, inexpensive jewelry, ammunition, toys, and pipes.
Common lead alloys: Lead is sometimes added to other alloys, such as pewter. It can also be alloyed with tin to make solder, which is used to join pieces of metals together.

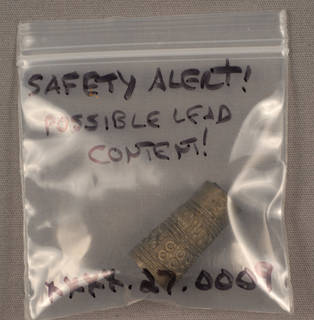

Toxicity: Lead is toxic to humans when absorbed through the skin, when lead fumes are inhaled, and when it is ingested. Lead is stored in the human body and is cumulative. Lead and lead compounds are probable carcinogens and can cause lead poisoning. Lead fumes are particularly dangerous. Extreme care should be taken when dealing with lead artifacts! Always wear gloves when handling lead and take caution not to touch other things with gloves that have come in contact with lead! Even metal objects that may potentially contain lead should be treated with caution.
Corrosion of lead: Lead tarnishes dark grey and its active corrosion products are white. Lead is easily corroded by acetic and formic acids. Contact with formic acid creates grey crystals to form on the surface of lead alloys.When lead is exposed to clean indoor air, it develops a film of lead monoxides on the surface. When exposed to the outdoors, lead corrodes and develops an adherent film of insoluble lead compounds. This film prevents further corrosion. All lead corrosion products are insoluble.

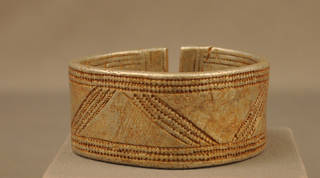

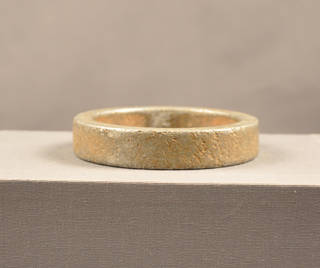

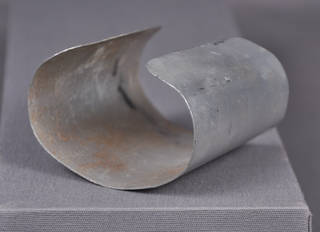

Aluminum is silver-white in color and has a very reflective, flat sheen. Aluminum is easily formed and manipulated.
Corrosion of aluminum: Aluminum corrosion products are colorless or white. When stored indoors, aluminum typically does not corrode due to a thin layer of quickly-formed aluminum oxide. When stored outdoors, aluminum weathers and turns grey because it becomes covered with various oxides and hydroxides. Aluminum that has been buried becomes covered with a thickening layer of aluminum hydroxides or aluminum hydroxide oxide.

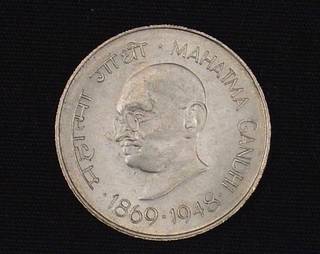

Nickel is silvery-white, hard, and resistant to corrosion. It is magnetic and often mixed with other metals to create special alloys, some of which are corrosion-resistant. Nickel is commonly used in coinage.
Toxicity: Some individuals can develop nickel allergies. Metallic nickel is also a known human carcinogen. Practice caution when dealing with nickel. Wear gloves when handling nickel objects and refrain from touching anything else with those gloves.

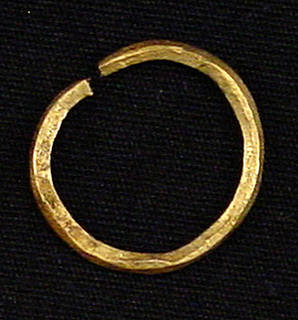

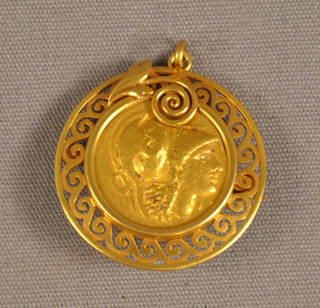

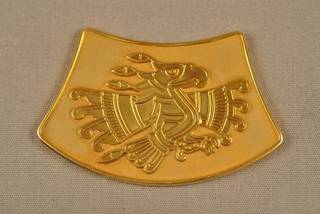

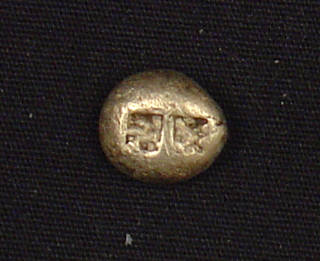

When pure, gold is yellow, non-magnetic, and soft, making it easy to manipulate. Gold does not tarnish, however some gold alloys can tarnish. Pure gold is also resistant to corrosion. Gold and its alloys are used in jewelry, ornaments, coins, gilding/goldleaf, dental repairs, circuit boards, architecture, engineering, and medicine. The kind of metal sulphide produced in the corrosion and the extent to which the object will corrode is dependent upon how much gold is present in the mixture and what the other metal in the mixture is. Alloys are typically produced to increase gold’s durability.
The risk level of metal objects is dependent upon: the type of metal the object is made of, the extent and activity of corrosion, and the past life of the object. If the type of metal or the past life is unknown, the object should be treated with extreme care. Objects of unknown composition should be treated as though they are delicate and toxic. Objects of unknown provenance should be treated as though they were buried or otherwise exposed to the elements. This will reduce the risk level of these items. Toxic, fragile, and corroded items and items that have potential to be toxic, fragile, or develop active corrosion are higher risk.
Stable temperature and relative humidity will prevent new or active corrosion. Stable materials should remain at 65°F (18°C) and 50% relative humidity. Relative humidity higher than 65% will corrode metals!

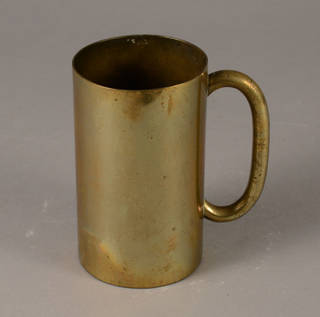

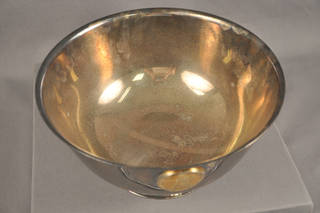

Oils in the skin can easily stain metals, so gloves should always be worn when handling metal objects. Wearing gloves will also help prevent additional damage to brittle or corroded items, and to protect handers from directly touching any hazardous/toxic metals.
Metal objects should not be stored in unpainted wooden boxes, on unpainted wooden shelving, or near wood pulp or wooden materials (unpainted wood releases acetic acid which can cause metals to corrode over time). If choosing to store objects on or near painted wood, avoid oil-based and alkyd paints. These paints will release volatile compounds over time. As with all objects, metal items should be stored on shelves at a safe distance from one another and should not be stacked unless absolutely necessary (and if stacked, should have a layer of inert foam or acid-free tissue between layers). Metal objects should only be stored on shelves that are easily accessible, and they should be placed in closed shelving, boxes, polyethylene bags, and/or covered with acid-free tissue to prevent dust buildup and reduce the need for cleaning.
Metal objects with active or new corrosion can be stored in polyethylene bags with dry silica gel. Artifacts with active corrosion stain and create dust and chloride, which can pose a threat to other objects. Objects with active corrosion should be removed from the stable collections and stored in a separate area with a relative humidity below 35% in order to prevent continued corrosion and damage to other collections.
Metal objects should be stored in an environment with sufficient air circulation. They should not be near doors, windows, vents, or heating units, or anything else that could cause a fluctuation in temperature or relative humidity or that could create a leak. Storage areas should be clean and free of dust. If metal objects are stored in an environment where they can collect dust, the dust that settles on them will retain moisture. Moisture from the air may contain sulphur compounds or chlorides, which can tarnish or accelerate corrosion of the objects. For more information on storage and handling of objects please refer to the following sections in the Museum Objects in General section: Storage of Objects and Handling Objects
Some metals are toxic and harmful to humans even in small doses. Lead is toxic, particularly when absorbed through the skin, when lead fumes are inhaled, and when it is ingested. Always wear gloves when handling toxic metals. Do not touch other things (your face, or other people or things) with gloves that have come in contact with toxic, or potentially toxic, metals. If a metal object cannot be identified, it should be treated with extreme caution.
Metal artifacts are at high risk for theft, because of the perceived value of some metals and because many metal items are small and easily portable. Measures should be taken to ensure that metal artifacts are secured in locked cases or cabinets, whether they are on exhibit or in storage. For more information on security please refer to the User Manual.
